Row Mango Cubing Machine

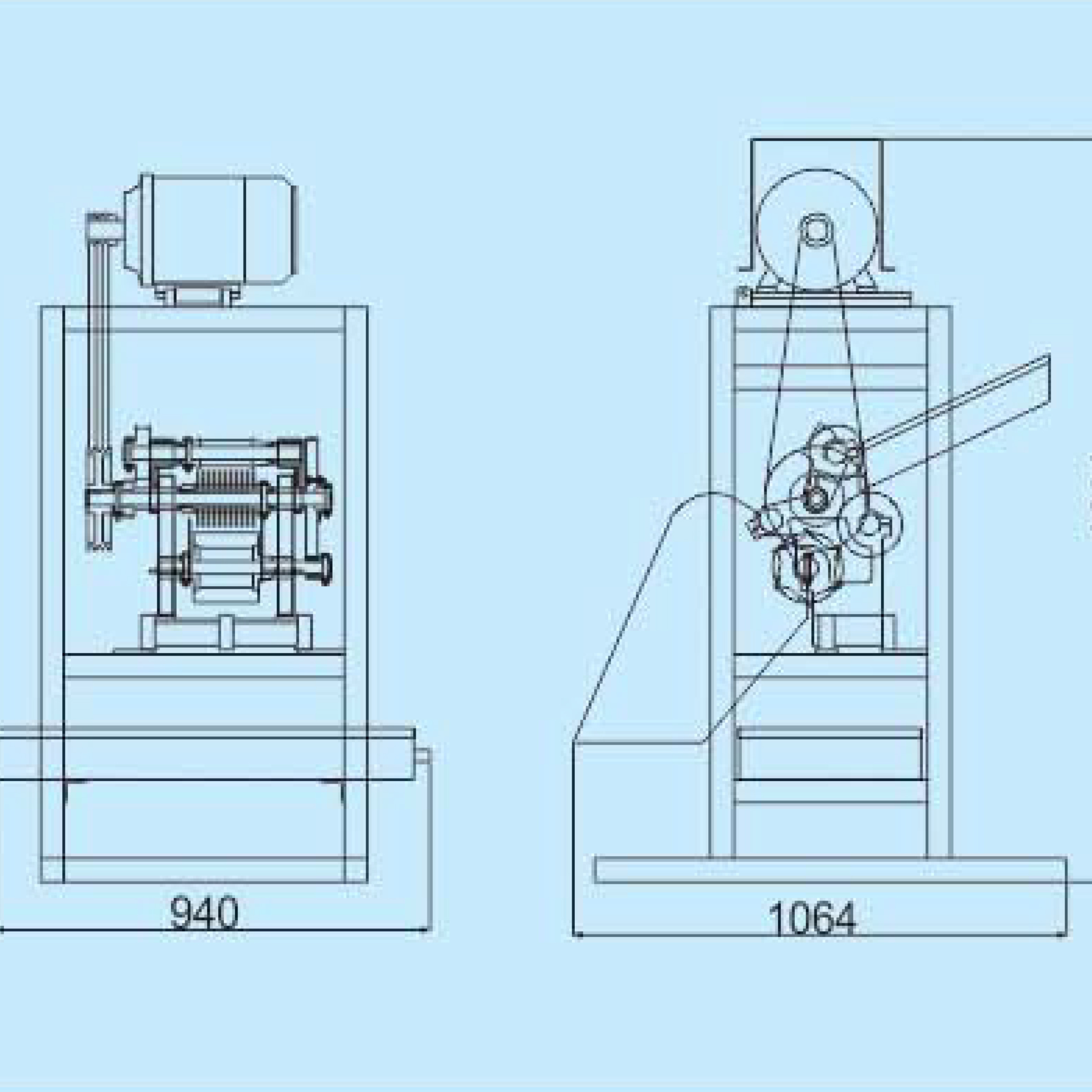

RAW MANGO CUTTING MACHINE (RMCM-500)
  • Suitable for cutting raw mangoes into small pieces.
  • De-seeded raw mangoes are to be fed into this machine through a small opening provided on the in-feed tray. The mango pieces are made to pass through a set of circular cutters & through a set of cross cutters where cutting action takes place.
  • Drive motor capacity is 5-HP.
  • Output up to 500-kg per hour.
  • Material of construction is SS-304/CF-8.
  • Suitable for piece size of 15-mm X 15-mm
RAW MANGO CUTTING MACHINE (RMCM-2000)
  • Suitable for cutting raw mangoes into small pieces.
  • De-seeded raw mango pieces are fed to the infeed conveyor of this machine. It is passed through a set of circular cutter blades & then through a set of cross cutter blades where the cutting action takes place. The spacing between circular cutters will be 15 mm.
  • Driven by 5-HP capacity motor.
  • SS-304/CF-8 Construction.
  • Capacity: 2000-kg/hour.
QUARTER CUTTING MACHINE
  • Suitable for cutting raw mangoes into 4-quarters.
  • Whole mangoes after removing the stem are to be passed through the chute provided on the top tray. The whole mango passes through a set of 4- circular cutters that are located at right angles to each other & are rotating at very high speed. The cutting action takes place when the mango fruit is passing through the cutters.
  • Separate 1.5-HP capacity motor is provided for each cutter.
  • Capacity: Up to 1,000-kg per hour.
  • SS-304 Construction.
